Bonfiglioli Planetary Gearmotor - 300 Series

Bonfiglioli Planetary Gearmotor (300 series)

Key benefits
– High torque density
– Extreme speed reduction and high output torque
– Low maintenance cost
– Extremely customizable
– High customization level
– Flexibility
– ATEX per explosive atmosphere 2G/2D

Main options
– In line/right angle version
– Independent cooling unit
– Patented integrated cooling solution
– Taconite seals
– ATEX certification for explosive environments

Torque range
– 1,250…1,286,700 Nm

Gear ratios
– 3.4 … 2,916

Certifications
– Certificate of compliance
– Inspection certificate
– ATEX

Brake options
– Negative multi-disk brake

Output
– Foot or Flange mounted
– Splined shaft (solid, heavy duty, hollow, hollow with axial bloackage device)
– Solid keyed shaft (solid, heavy duty, stirrer/mixer version)
– Hollow shaft with double keyway or shrink disk

Motors
– Input with solid shaft Input with e-motor coupling:
– M, ME, MX [compact asynchronous]
– BN, BE, BX [IEC asynchronous]
– BSR [IEC reluctance]
– BS [IEC single phase]

Motor options
– Thermistors and thermostat sensors
– Independent forced cooling
– Incremental, sin/cos absolute single/multi-turn encoders
– Tropicalization
– Anti-condensate heaters
– Backstop

Sales Area : Bonfiglioli Indonesia, Bonfiglioli Medan, Bonfiglioli Jakarta, Bonfiglioli Pekanbaru, Bonfiglioli Riau, Bonfiglioli Palembang, Bonfiglioli Lampung, Bonfiglioli Kalimantan, Bonfiglioli Sulawesi, Bonfiglioli Makassar, Bonfiglioli Surabaya, Bonfiglioli Aceh, Bonfiglioli Pontianak, Bonfiglioli Samarinda, Bonfiglioli Balikpapan, Bonfiglioli Banjarmasin, Bonfiglioli Bandung, Bonfiglioli Semarang, Bonfiglioli Batam, Bonfiglioli Padang, Bonfiglioli Malang, Bonfiglioli Palangkaraya, Bonfiglioli Sampit

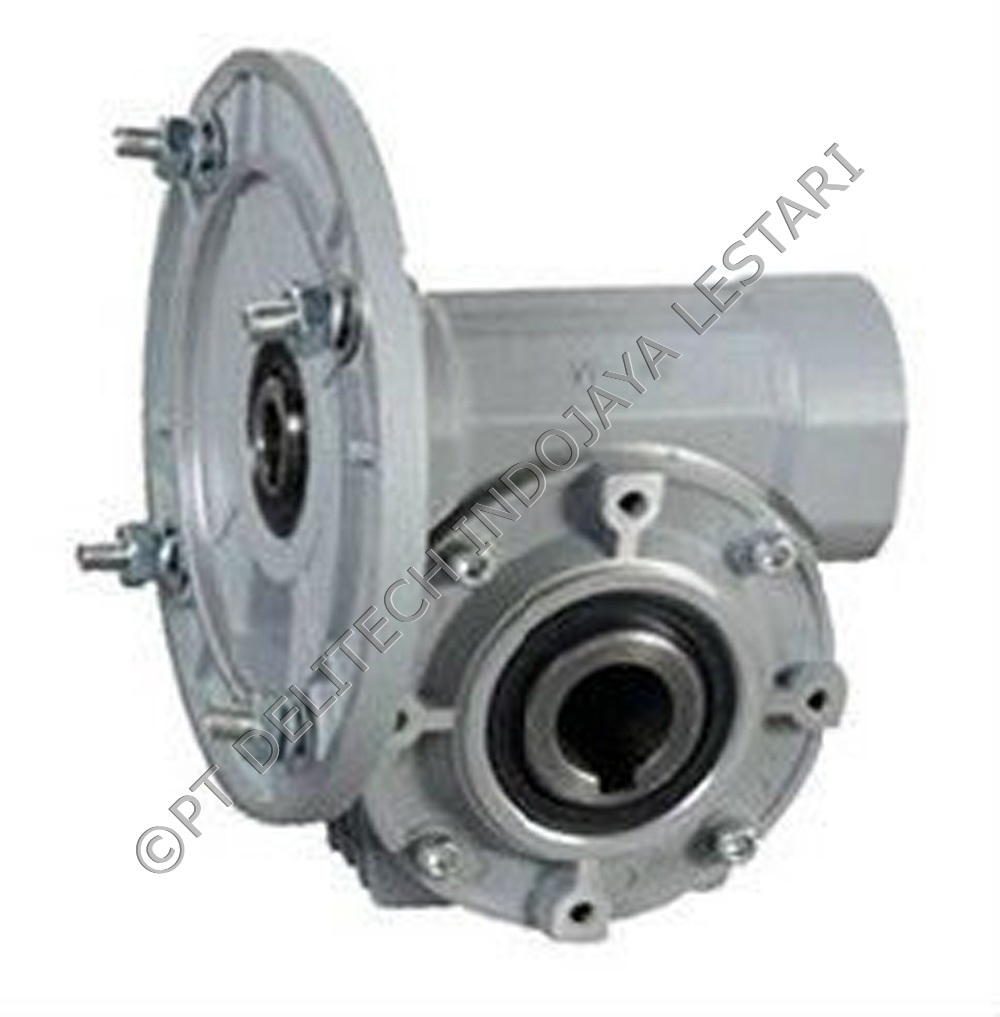

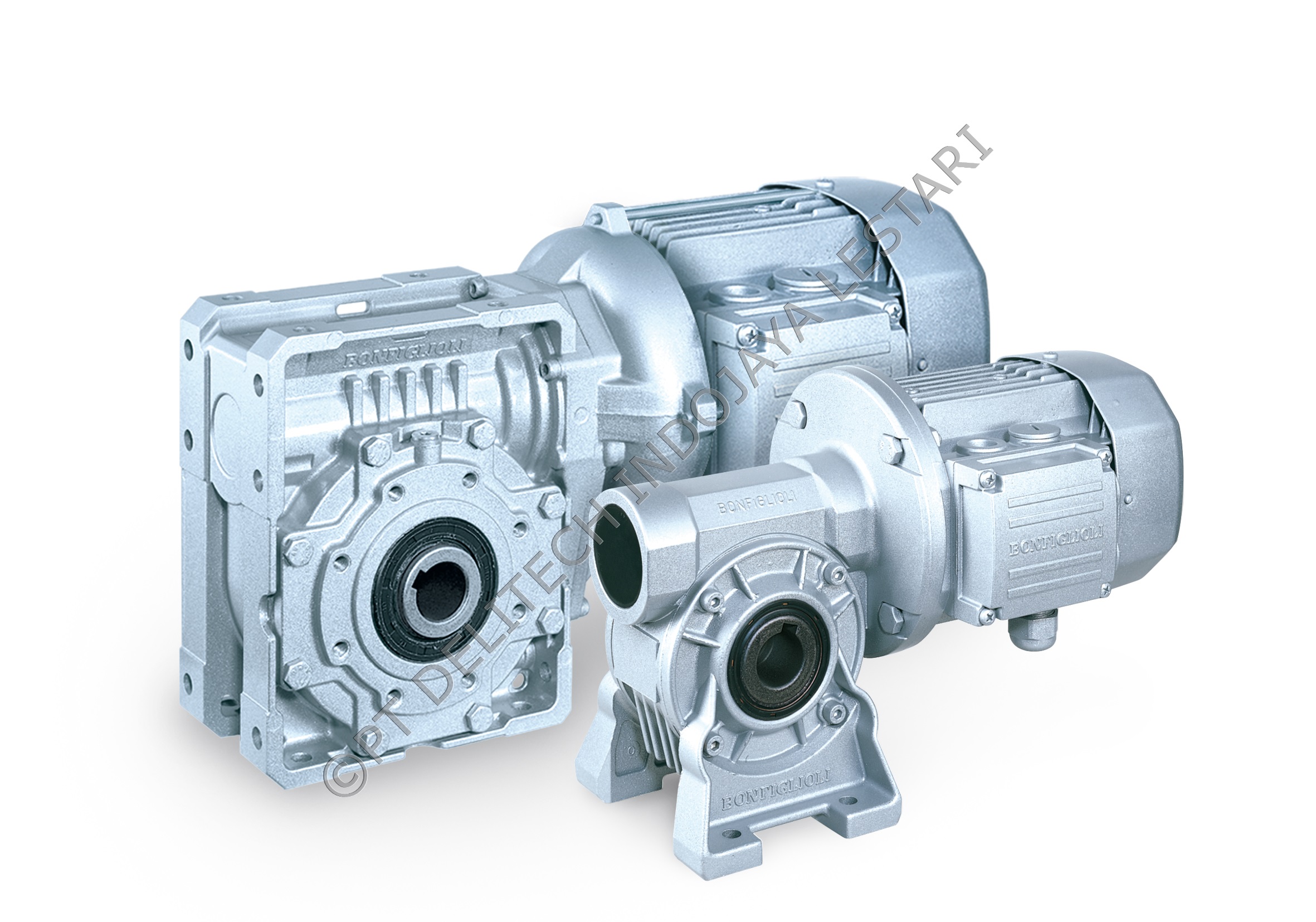

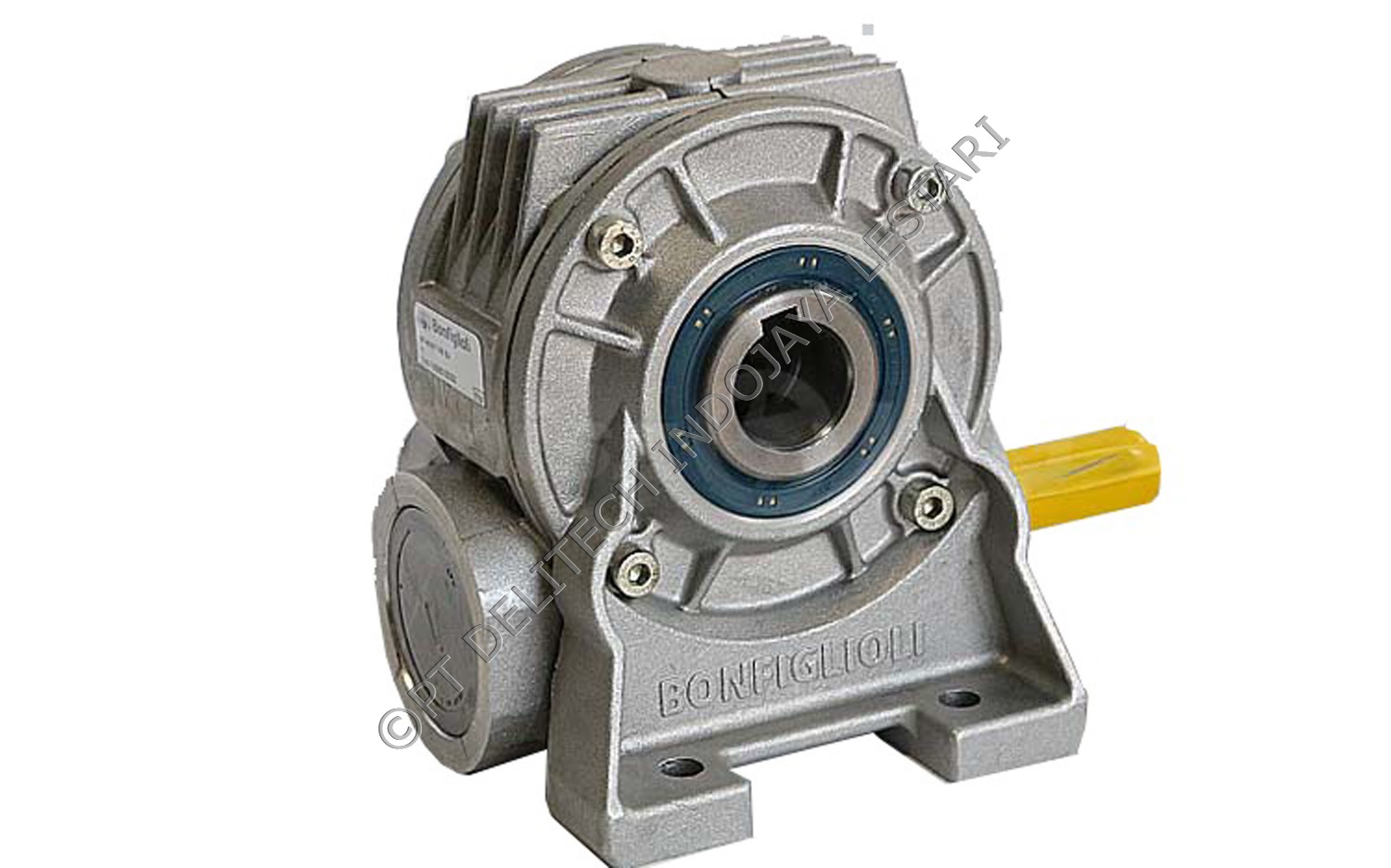

Bonfiglioli Worm Gearmotor (VF & W series)

Key benefits
– Cost effective solution
– Low noise
– High peak load capacity
– Minimized mounting space
– Long operating life
– High reliability
– High number of possible configuration
– Wide output speed selection range
– Wide output torque selection range
– ATEX gearbox for explosive environnements 2G/2D

Main options
– Up to C5 Surface protection
– Short flange & reinforced bearings
– Torque arm
– Fluoroelastomer oil seals

Torque range
– 13 … 7,100 Nm

Gear ratios
– 7 – 300 … 2,300

Certifications
– Certificate of compliance
– Inspection certificate
– ATEX

Transmissible Mechanical Power
– 0.04 …75kW

Output
– Keyed hollow shaft
– One or double sided solid plug-in output shaft
– Torque limiter

Motors
– Input with solid shaft
– Input with e-motor coupling:
– M, ME, MX [compact asynchronous]
– BN, BE, BX [IEC asynchronous]
– BSR [IEC reluctance]
– BS [IEC single phase]

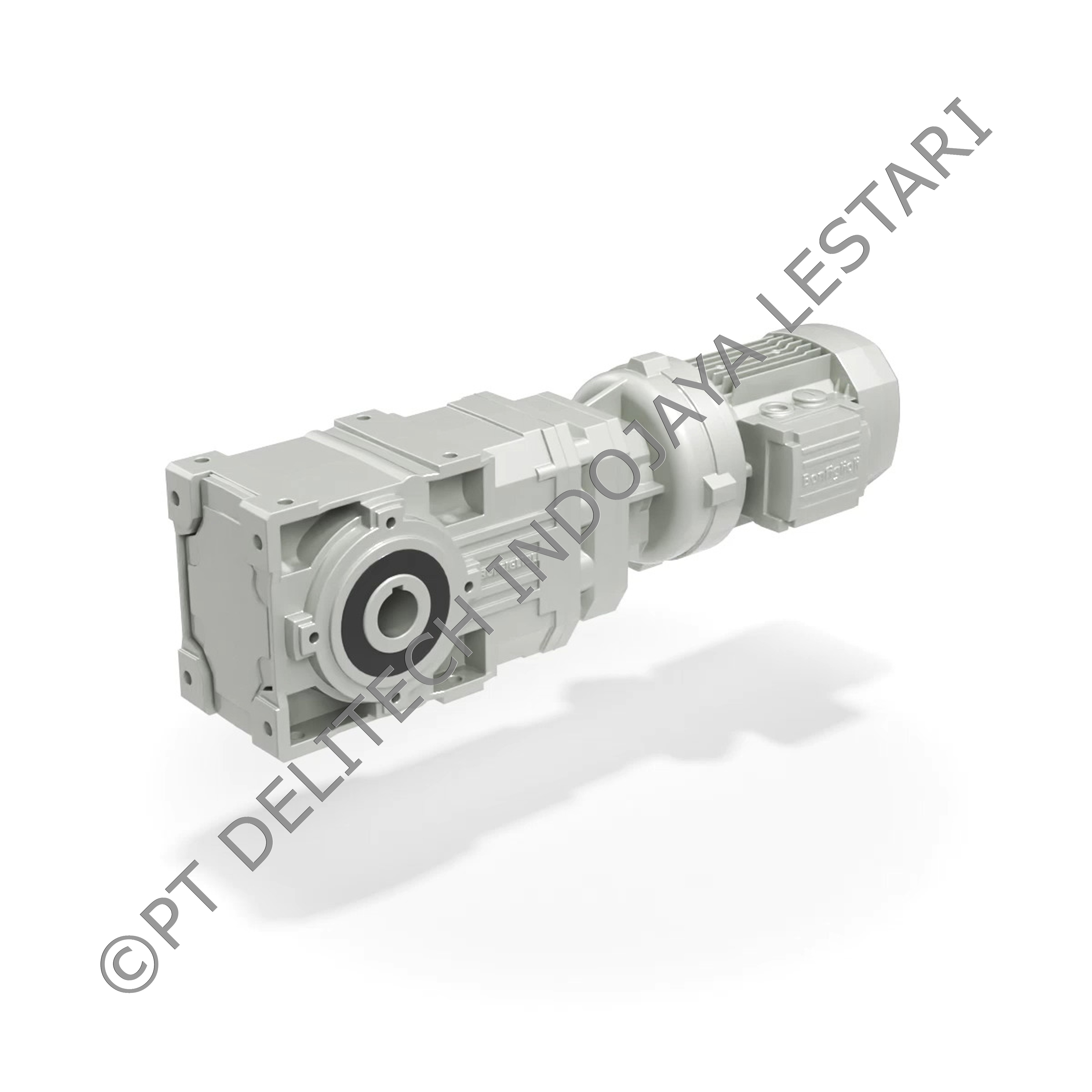

Bonfiglioli Indonesia - A Series Bevel Helical

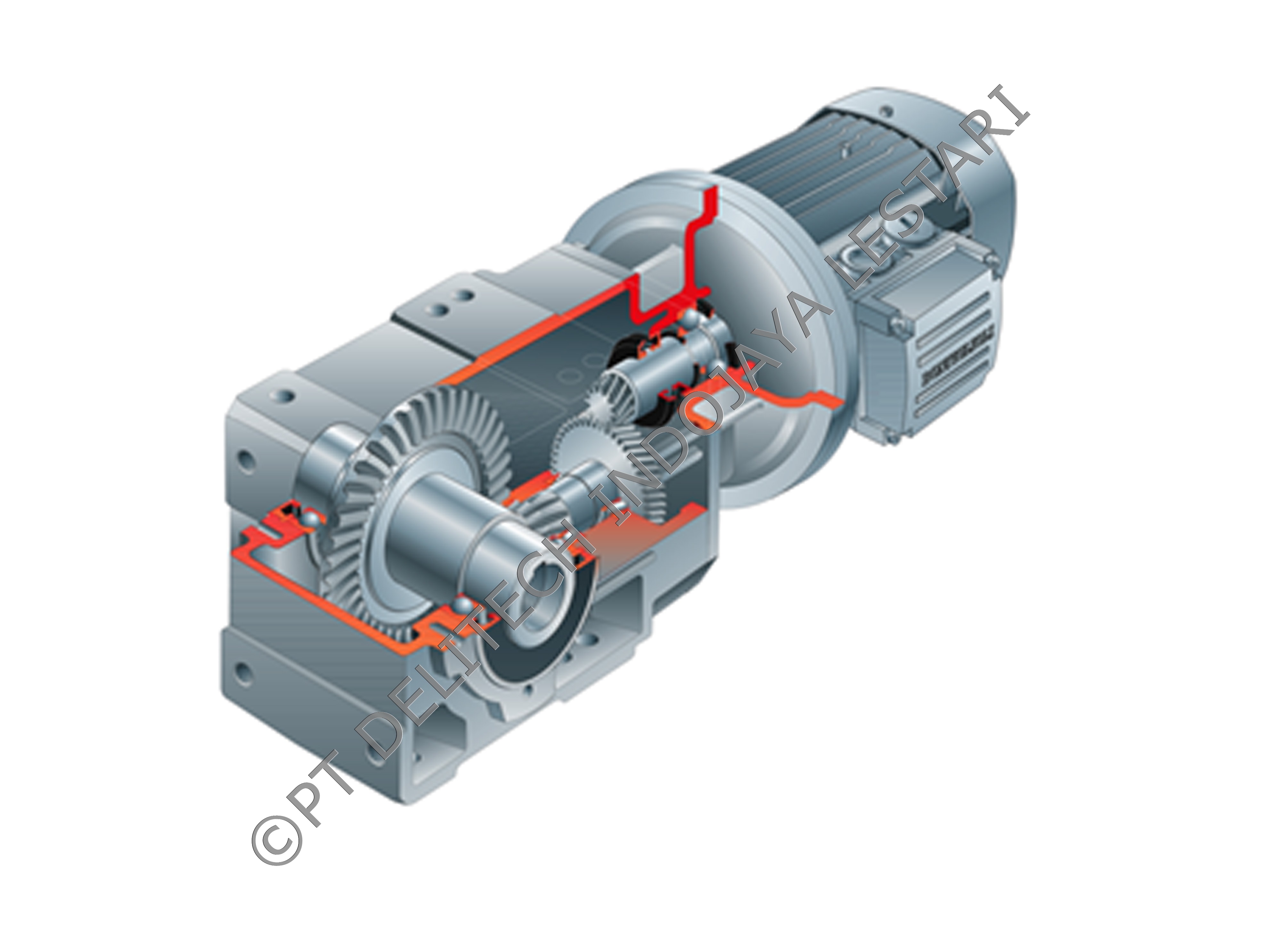

Bonfiglioli Helical Bevel Gearmotors (A series)

Key benefits
– Minimized mounting space
– Wide output speed selection range
– Reduced standard backlash
– High dynamic and energy saving solution
– Wide output speed selection range

Bonfiglioli Helical Gearmotor (AS series)

Key benefits
– Minimized mounting space
– Reduced installation space and wide output speed selection range
– Reduced standard backlash
– Highly dynamic, energy-saving solution
– Wide output speed selection range
